ER309Mol-Stainless Steel Wire ‌

Technical Compliance‌: AWS 5.14 Class ER309Mol / ASME SFA 5.14 Class ER309Mol

Product Overview

ER309Mol is an advanced low-carbon austenitic stainless steel welding wire with strategic molybdenum addition. This premium electrode delivers superior performance in Gas Metal Arc Welding (GMAW/MIG) and Gas Tungsten Arc Welding (GTAW/TIG) processes. The molybdenum-enhanced composition provides exceptional high-temperature strength, crack resistance, and corrosion protection beyond standard ER309L grades. Specifically engineered for demanding dissimilar metal joining applications, this wire ensures reliability in extreme operating conditions.

Key Features & Benefits

• Molybdenum Enhancement: The deliberate Mo addition significantly improves high-temperature strength, creep resistance, and overall structural integrity under thermal stress.

• Ultra-Low Carbon Content (<0.03%): Prevents carbide precipitation and intergranular corrosion, ensuring long-term performance stability.

• Optimized Microstructure: Balanced ferrite-austenite phase composition prevents hot cracking while maintaining excellent ductility.

• Extended Temperature Performance: Maintains mechanical properties and corrosion resistance in both elevated and cryogenic temperature ranges.

• Corrosion Protection: Excellent resistance to pitting, crevice corrosion, and general oxidation in aggressive environments.

• No Post-Weld Heat Treatment: Eliminates additional processing steps, reducing production time and costs.

• Excellent Weldability: Produces smooth, spatter-free beads with minimal defects and easy slag removal.

Technical Specifications

• Standards Compliance: Meets AWS A5.18 ER309L with enhanced molybdenum specifications.

• Available Diameters: 0.8mm, 1.0mm, 1.2mm, and 1.6mm for versatile application needs.

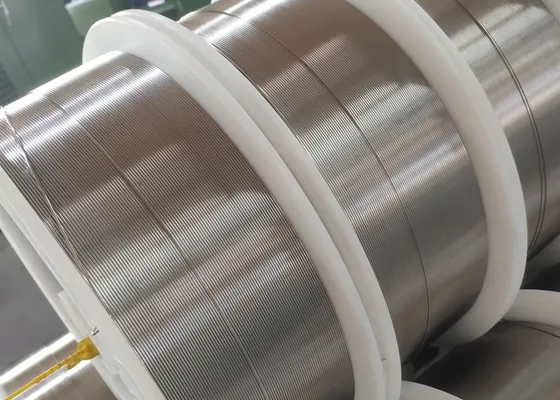

• Packaging Options: Available in 2kg spools, 5kg spools, or 15kg reels to match operational requirements.

Applications

• Dissimilar Metal Welding: Joining low-alloy steels, heat-resistant steels, and corrosion-resistant alloys in critical structural applications.

• Cladding & Overlay Welding: Base layer applications for surfacing operations requiring superior mechanical properties.

• High-Temperature Components: Fabrication of heat exchangers, reactors, and furnace parts.

• Industrial Maintenance: Repair and restoration of worn components in manufacturing, marine, and energy sectors.

Important Usage Guidelines

1. Shielding Gas Requirements

• Use CO₂ purity of 99.98% or higher to ensure weld integrity and prevent porosity.

• Maintain gas flow rate at ≥20 L/min for 1.2mm and 1.6mm wire diameters.

• Ensure proper gas coverage throughout the welding process to maintain protective atmosphere integrity.

2. Environmental Conditions

• Provide adequate wind shielding around welding areas using temporary barriers or permanent enclosures.

• Avoid outdoor welding in windy conditions unless proper windbreaks are established.

• Monitor ambient conditions to prevent gas disruption that could lead to weld defects.

3. Surface Preparation

• Thoroughly remove all oil, grease, moisture, and surface contaminants using appropriate solvents.

• Implement mechanical cleaning methods where necessary to ensure perfectly clean welding surfaces.

• Verify surface cleanliness immediately before initiating welding operations.

Why Choose ER309Mol?

ER309Mol combines advanced material science with practical welding advantages:

• Enhanced Durability: Molybdenum addition provides superior resistance to creep and thermal fatigue.

• Corrosion Protection: Enhanced capability against chemical exposure in aggressive industrial settings.

• Operational Efficiency: Reduces downtime with easy handling characteristics and minimal post-weld requirements.

• Proven Performance: Reliability demonstrated across multiple industries and critical applications.
