Product Information

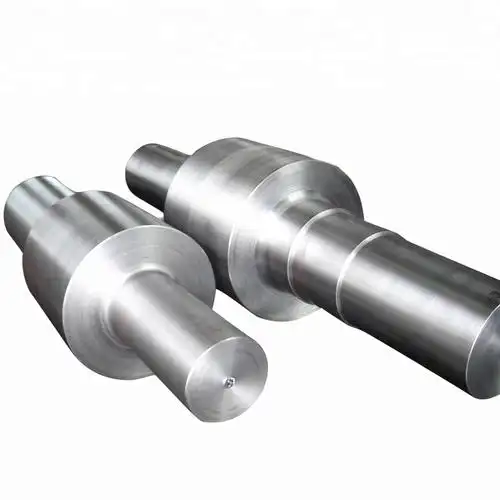

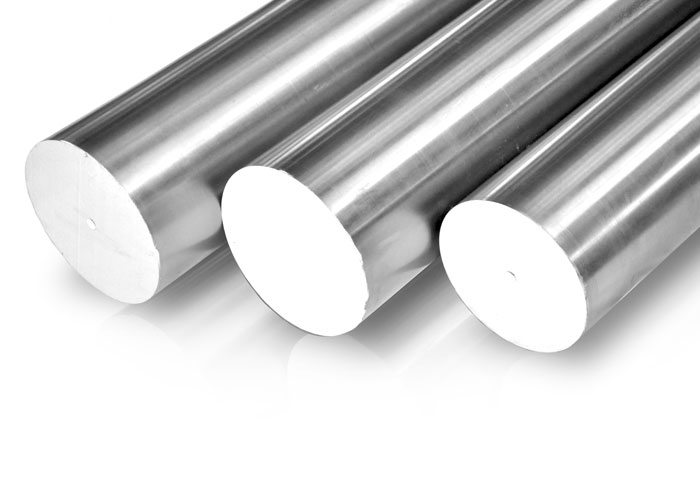

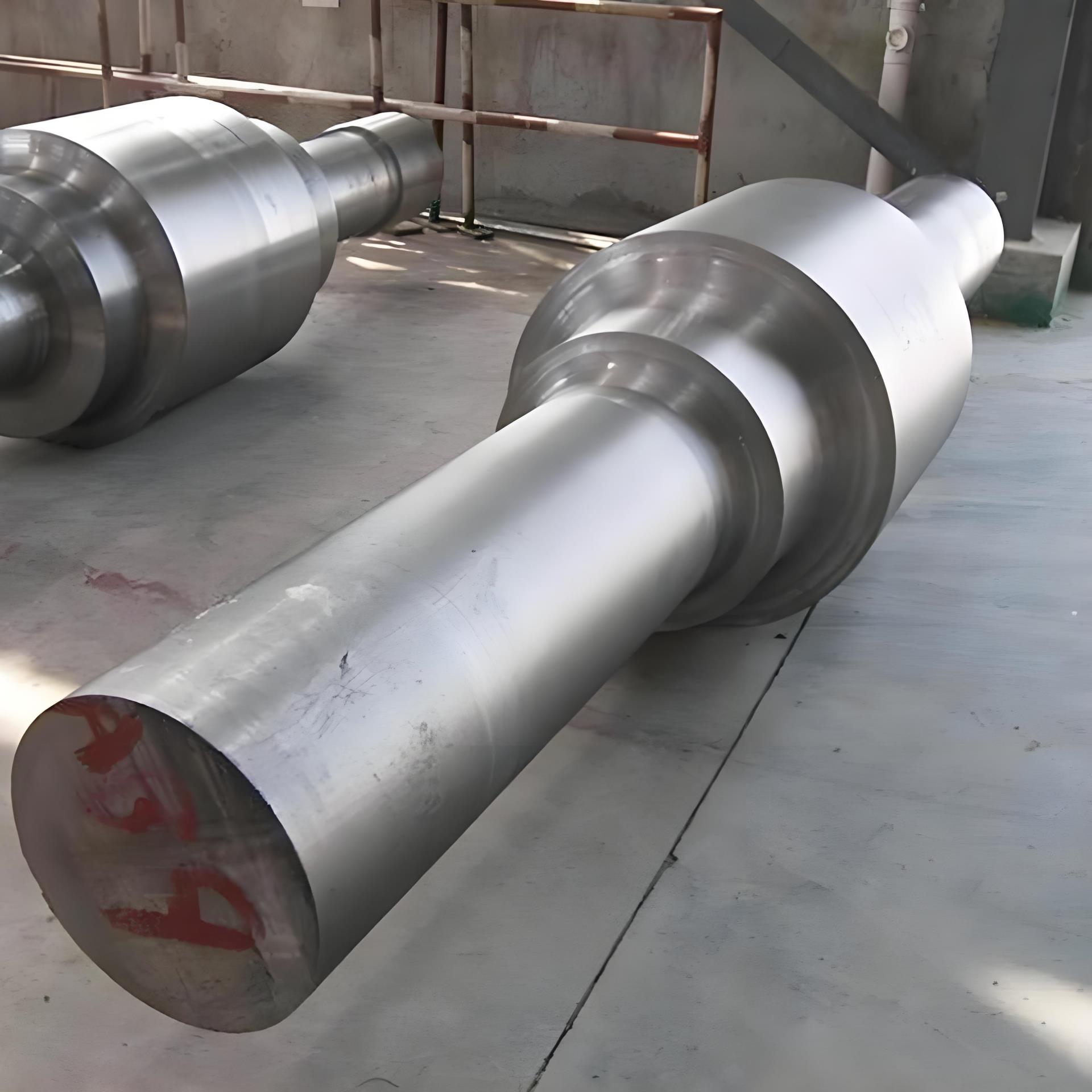

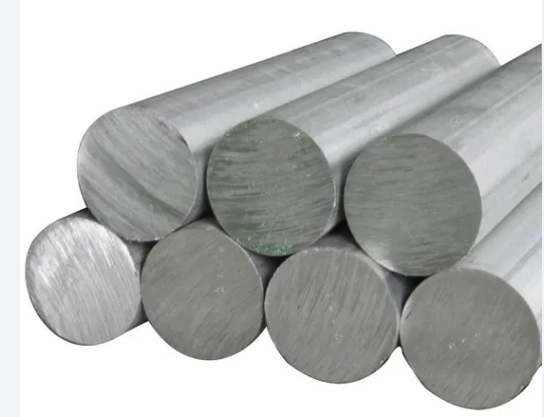

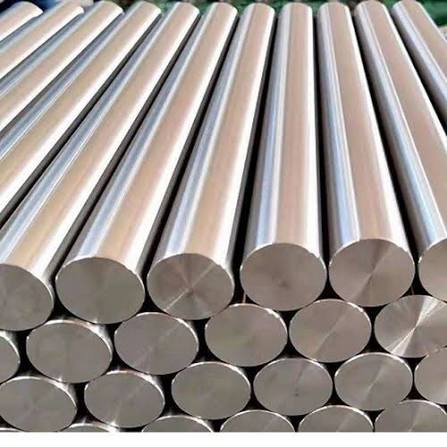

Nickle Alloy Forging bar
ADTO SS Division possesses the expertise and the experience required to produce the highest quality special alloy forging products.From fittings to flanges,pipes to plates,rings to bars,and billets to other various shaped parts.Ourmaterial will satisfy your various project specifications.

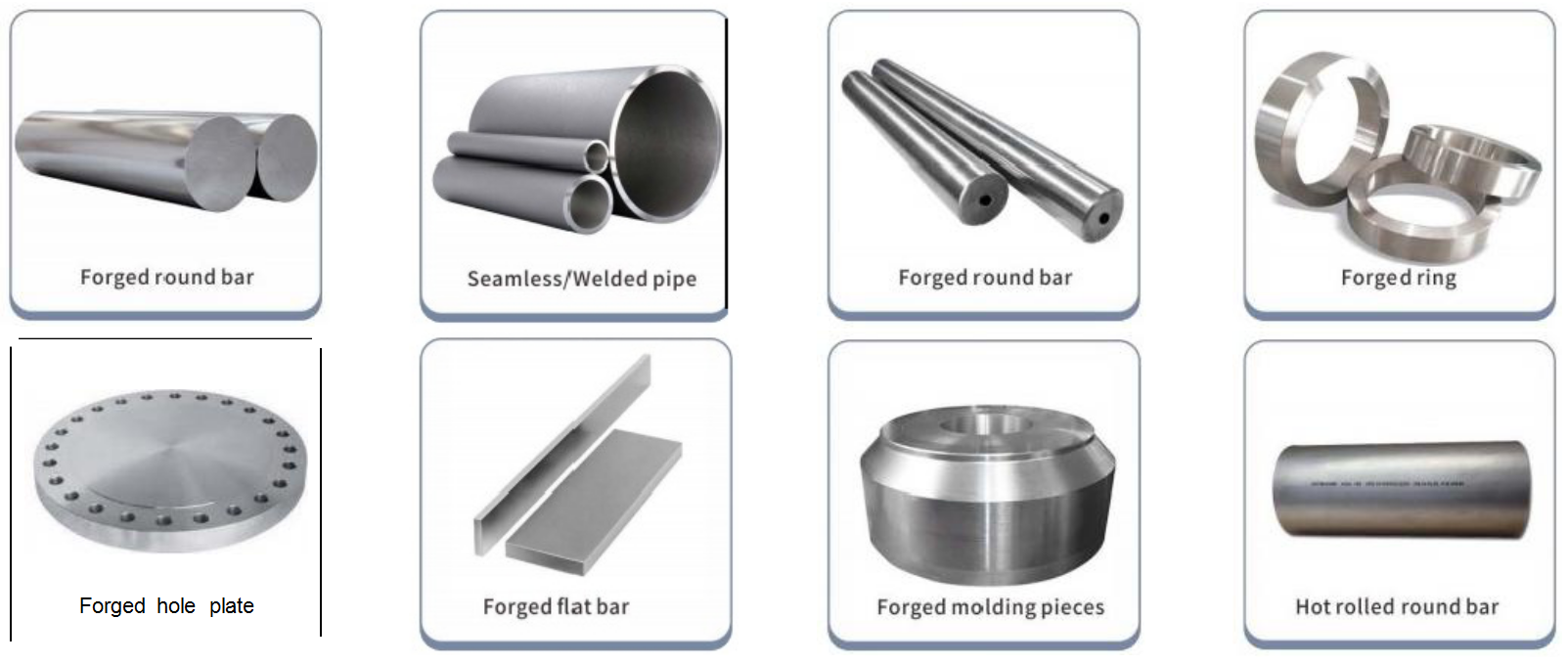

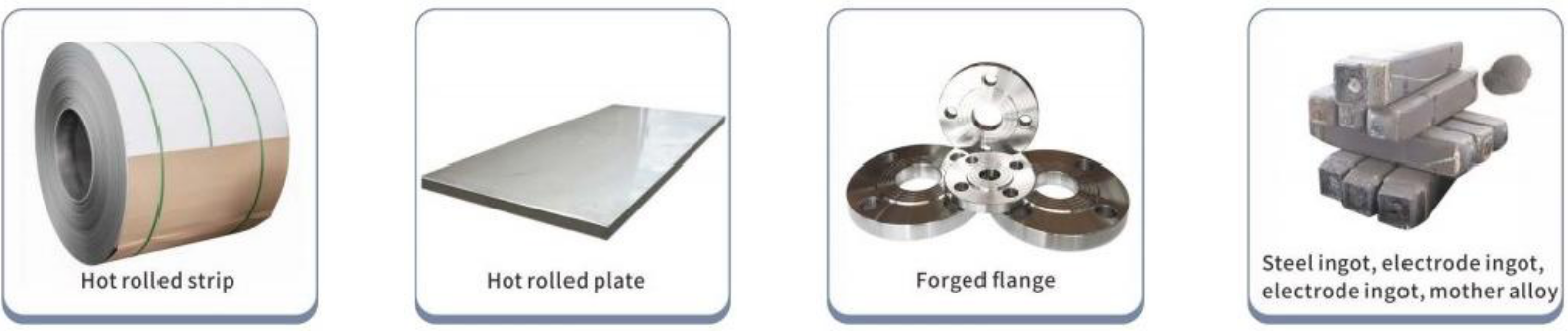

PRODUCT SPECIFICATION :
| PRODUCT | SIZE RANGE |
| Forging bar | φ80-450mm |
| Round plate | D≤1200mm, H≤1400mm |
| Round bar | φ4-450mm |
| Pipe | T:1-50mm, OD:6-800mm |
| Plate | T:0.5-80mm |
| Module | Section Areas≤280000mm², W≤1000mm, Tk≥400mm |
| Ring | D≤2000mm,H≥100mm |
Pipe fitting | Elbow,Tee,Reducer,Cross,Cap,Flange |
| Othervarious shaped parts | As per client's requirement |
MAIN MATERIAL GRADES:
| GRADE | UNS | DIN |
| ALLOY400 | N04400 | W.Nr.2.4360 |
| ALLOY K-500 | N05500 | W.Nr.2.4375 |
| ALLOY 600 | N06600 | W.Nr.2.4816 |
| ALLOY 601 | N06601 | W.Nr.2.4851 |
| ALLOY 617 | N06617 | W.Nr.2.4663 |
| ALLOY 625 | N06625 | W.Nr.2.4856 |
| ALLOY 690 | N06690 | W.Nr.2.4642 |
| ALLOY 718 | N07718 | W.Nr.2.4668 |
| ALLOY X-750 | N07750 | W.Nr.2.4669 |
| ALLOY A-286 | S66286 | W.Nr.1.4980 |
| ALLOY 800 | N08800 | W.Nr.1.4876 |
| ALLOY 800H | N08810 | W.Nr.1.4958 |
| ALLOY 800HT | N08811 | W.Nr.1.4959 |
| ALLOY 825 | N08825 | W.Nr2.4858 |
| ALLOY 901 | N09901 | W.Nr.2.4662 |
| ALLOY 925 | N09925 | |
| ALLOY 926 | N08926 | W.Nr.1.4529 |
| ALLOY75 | N06075 | W.Nr.2.4951 |
| ALLOY80A | N07080 | W.Nr.2.4952 |
| ALLOY90 | N07090 | W.Nr.2.4632 |
| ALLOY105 | Alloy 105 | W.Nr.2.4634 |
| ALLOY263 | N07263 | W.Nr.2.4650 |
| ALLOY B | N1001 | |
| ALLOY B-2 | N10665 | W.Nr.2.4617 |
| ALLOY B-3 | N10675 | W.Nr.2.4600 |
| ALLOY C | N10002 | |
| ALLOY C-276 | N10276 | W.Nr.2.4819 |
| ALLOY C-22 | N06022 | W.Nr.2.4602 |
| ALLOY C-4 | N06455 |
| ALLOYG-35 | N06035 | W.Nr.2.4643 |
| ALLOYX | N06002 | |
| ALLOYN | N10003 |

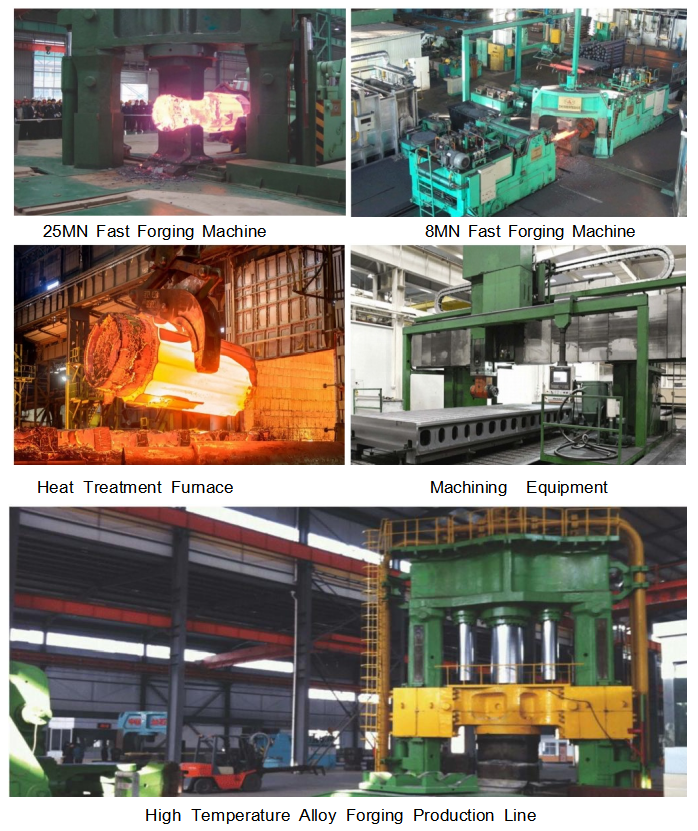

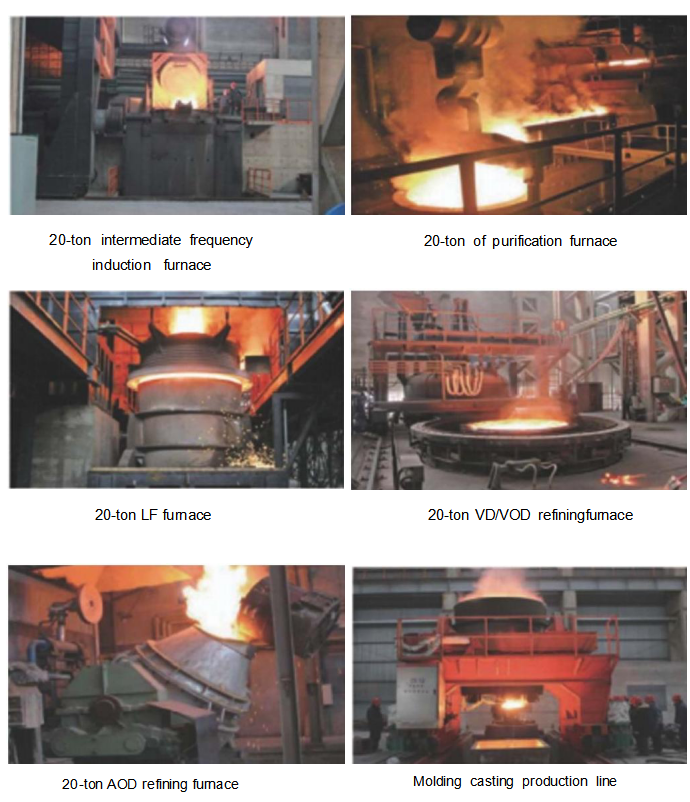

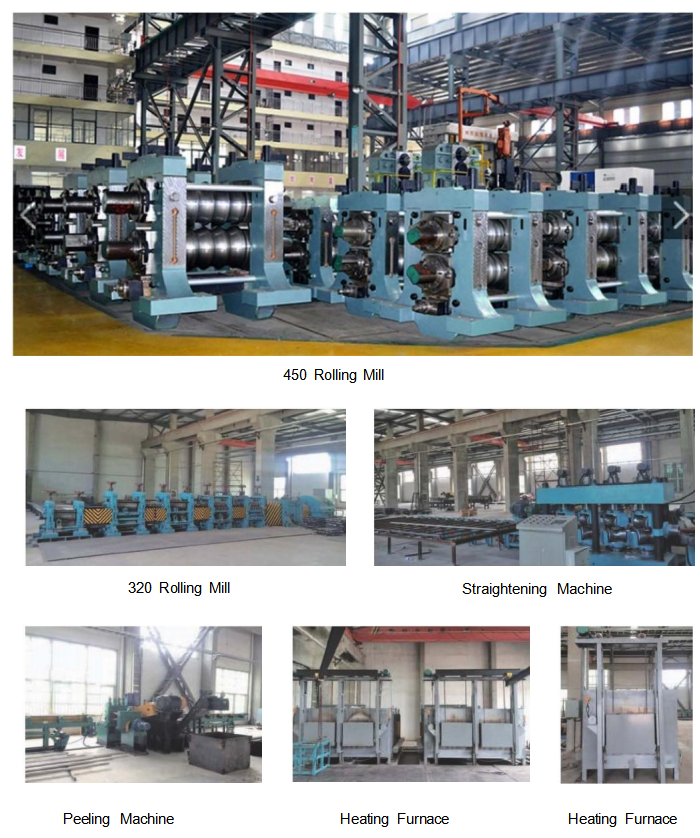

Special Smelting Equipments:

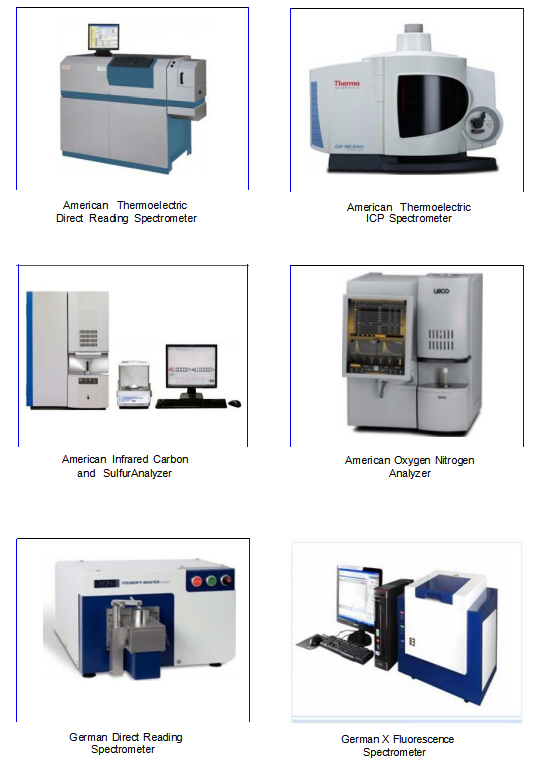

Chemical Composition Tests

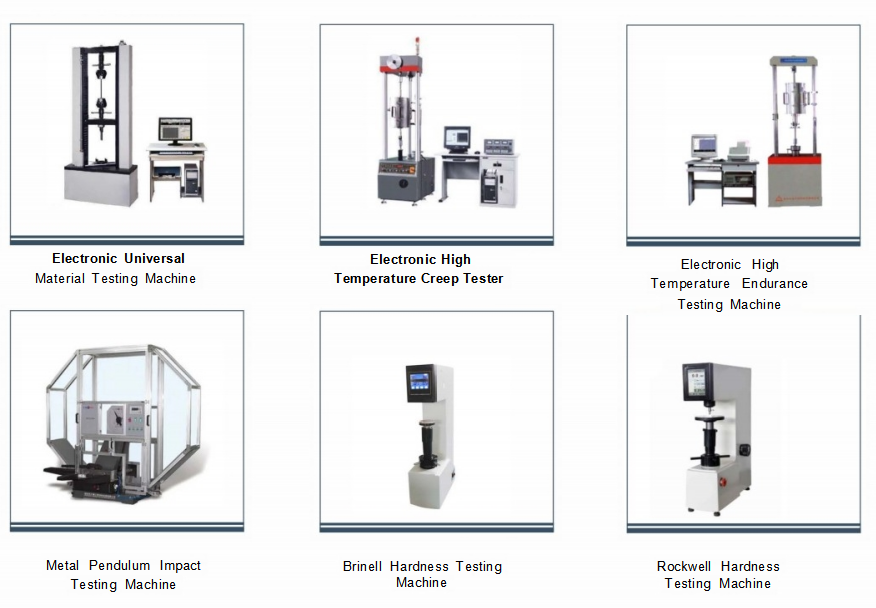

Mechanical Properties Tests

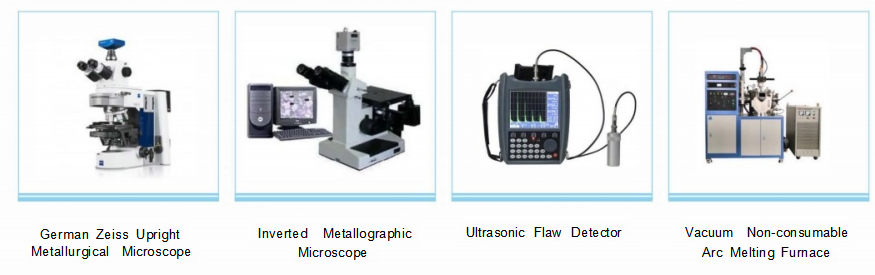

Metallographic Analysis and Nondestructive Tests
