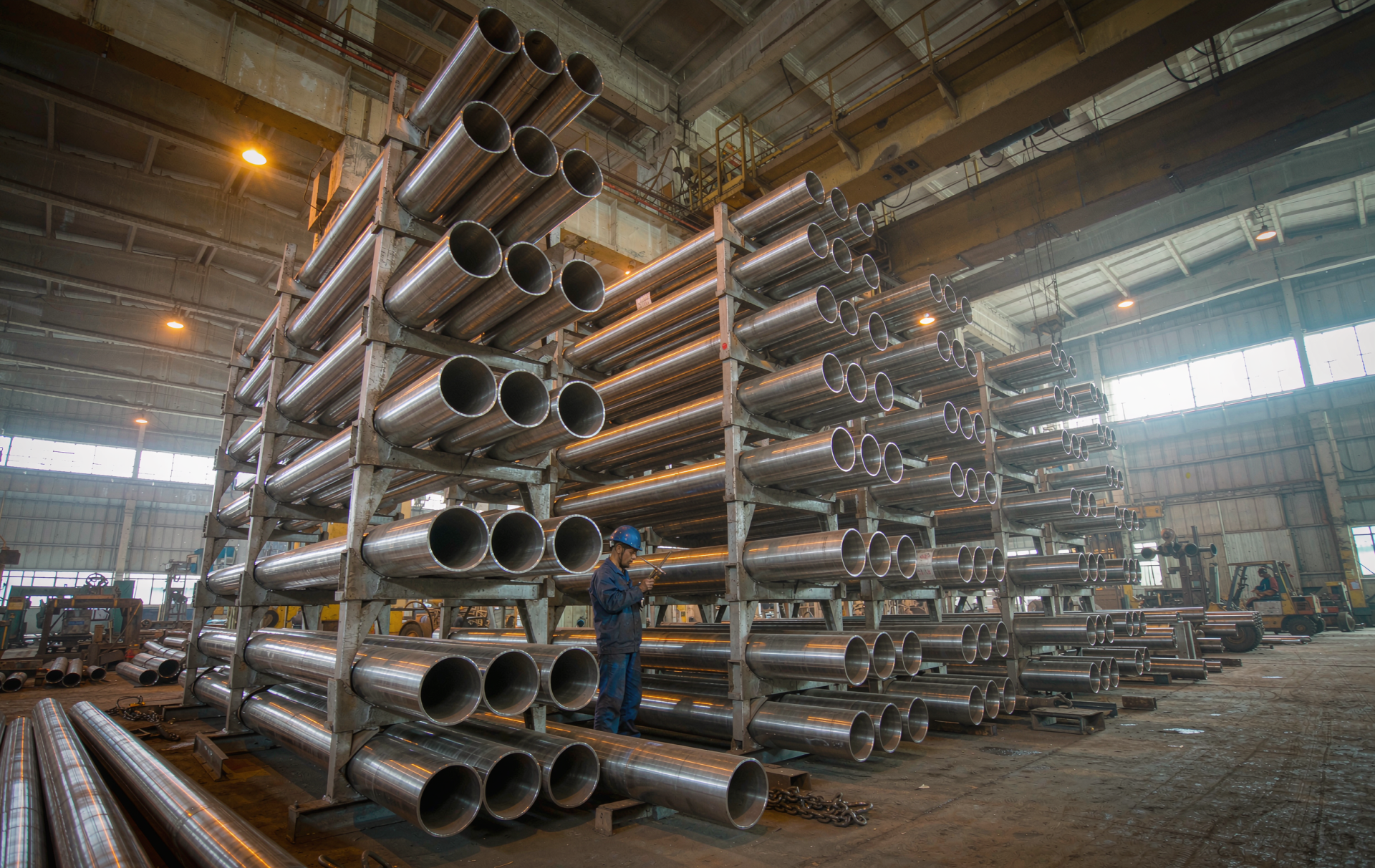

17-4 PH Stainless Steel Pipes: High-Strength Metallurgy, Specs & Uses

In high-performance engineering sectors where standard austenitic grades lack sufficient mechanical load capacity, 17-4 PH stainless steel pipes (UNS S17400 / EN 1.4542) provide an exceptional solution. As a martensitic precipitation-hardening alloy, 17-4 PH combines high tensile strength, excellent transverse mechanical properties, and robust corrosion resistance through a straightforward heat-treatment process.

Key Metallurgical Features & Mechanical Performance

Precipitation Hardening & High Tensile Strength: 17-4 PH achieves its superior strength through a low-temperature heat treatment (aging) process that precipitates copper-rich phases within its martensitic matrix. Depending on the aging condition (such as H900, H1025, or H1150), ultimate tensile strengths range from 930 MPa to over 1,300 MPa (135,000 to 190,000 psi), making it ideal for high-stress mechanical tubing and structural fluid lines.

Balanced Corrosion Resistance: Containing roughly 15.0% to 17.5% chromium along with 3.0% to 5.0% nickel and copper, 17-4 PH delivers corrosion resistance comparable to Grade 304 in many mild atmospheric and industrial media while offering significantly higher hardness and fatigue endurance.

Precise Chemical Composition Matrix: The alloy specification complies with ASTM A564 and AMS 5643 standards, tightly regulating elemental percentages:

Chromium (Cr): 15.0% - 17.5%

Nickel (Ni): 3.0% - 5.0%

Copper (Cu): 3.0% - 5.0%

Molybdenum (Mo): $\le 0.5\%$

Carbon (C): $\le 0.07\%$

Iron (Fe): Balance (approx. 73% - 76%)

Versatile Fabrication & Heat-Treatment Control: In the annealed condition (Condition A), 17-4 PH can be readily machined, formed, and welded into complex tubular shapes. Following fabrication, components can be single-step aged at specific thermal thresholds to achieve exact hardness and yield strength requirements without heavy scaling or distortion.

Core Industrial Applications of 17-4 PH Stainless Steel Tubing

Aerospace & Defense Components: Utilized in high-load aircraft structural actuators, landing gear components, and missile body tubes where a high strength-to-weight ratio and resistance to high-velocity mechanical fatigue are safety-critical requirements.

Oil & Gas Downhole Tubing & Valve Stems: Specified for sour service and high-pressure downhole instrumentation housings, valve stems, and pump shafts where resistance to chloride stress corrosion cracking (SCC) and abrasive multi-phase flow is mandatory.

Chemical Processing & High-Pressure Fluid Transfer: Deployed in aggressive chemical processing lines handling corrosive slurries and high-pressure catalysts, ensuring long-term wall integrity and leak prevention under extreme operating cycles.

Marine & Offshore Engineering: Integrated into marine drive shafts, subsea fastener pins, and hydraulic control lines exposed to continuous sea spray and marine humidity.

Upgrade Your High-Strength Piping Systems Today

Incorporating precipitation-hardened 17-4 PH stainless steel pipes into your engineering design ensures maximum mechanical reliability, exceptional load containment, and long-term durability in severe service environments.

Contact our metallurgical engineering team today to request Mill Test Reports (MTRs), heat-treatment technical datasheets, and custom quotation options for your upcoming industrial project.
